全电动堆高车定做厂家惠泽机械,提供特种设备许可证供您上牌,提供现场测量出具方案,给图纸确认生产,保证好用,不适用的全电动堆高车惠泽包退换.让您购买放心,省心,提高效率!

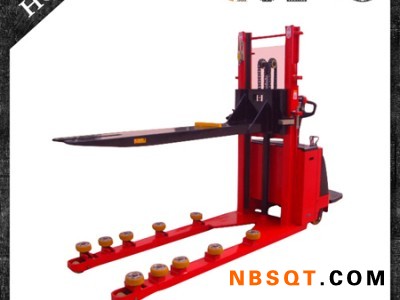

全电动堆高车定做的碳化钨炉内取料全电动堆高车适合碳化钨的炉内取料；
载重量\提升高度\叉长\叉上装夹具等据您要求订制；
上升速度可控，要快则快，要慢则慢；
台湾极智提升泵站动力强,噪声低,性能稳定；
底腿上加装10只滚轮，方便车辆进入轨道；
美国科蒂斯电控总成，国际知名品牌，经久耐用；
两侧有额定行程限位开关，两支锻打叉合在一起更适合炉内取料。
Used for wolfram carbide collecting from furnace;
Non-standard similar items could be customized upon requests;
Taiwan KS lift pump, with strong power, noiseless, reliable and stable performance;
Outriggers with 10pcs rollers, easy for trolley enter the pathway;
America Curtis electric control assy, international famous brand, reliable and durable;
Mast with limit switch at both sides, two forged forks combined to collect materials from furnace.
全电动堆高车定做碳化钨炉内取料全电动堆高车详细参数如下:
型 号 Model | CDD0816 |
订 货 号Order Number | 2.70001 |
额定载重 Load Capacity | 800 |
起升高度Max. Lift Height | 1600 |
蓄 电 池 Battery | 24/210 |
充 电 器 Charger | 24/30 |
提升泵站Lift Motor | 2.5 |
驱动电机Drive Motor | AC1.5 |
车身重量Weight | 656 |
货叉尺寸Fork Size | 1200*240*45 (LxWxH) |
货叉外宽Fork Overall Width | 600 |
外形尺寸Overall size (LxWxH) | 2300 *850 *2000 |
离地Min. Fork Height | 90 |
底腿尺寸 Outriggers Size | 1000*115*50 (LxWxH) |
驱动轮 Drive Wheel | ￠250*80 x 1pc |
辅助轮 Auxiliary Wheel | ￠150*50 x 2pcs |
前轮Front Wheel | ￠80*70 x 2pcs |
爬 坡 度 Climbing Slope | 4/6 |
通道要求 Working Aisle (mm) | 2400转弯Turning; 880前进后退 Forwards and Backwards |
